IoT Smart Box Comprehensive Intelligent Box Support Customization
Technical Parameter
| Air switch |
| Rated voltage | AC220V |
| Rated current | 10A |
| Rated power | 50HZ |
| Lightning stroke ability | 10KA |
| Actuation time | ≤0.05S |
| Power surge protection module |
| Maximum flow rate | 40KA,60KA,80KA,100KA,120KA for option |
| Nominal operating voltage | AC220V |
| Maximum continuous operating voltage | AC385V |
| Response time | <25ns |
| Output voltage |
| Centralized power supply unit | DC12V8A/DC12V16A/DC24V4A/DC24V8A for option |
| DC power port lightning protection | 1.2/50μs 6KV(2Ω) |
| AC220V output port | 1 group |
| Other parameter |
| Input power | AC100V-AC240V |
| Working temperature | -20℃-75℃ |
| Product card slot | 3 pieces |
| Headlamp | LED lighting |
Product Overview
Intelligent Supervisory Box can be installed a variety of service cards, to achieve multi-service data gathering and transmission function. It is used widely and includes intelligent public safety project construction of urban public security surveillance, counter-terrorist, Road mount surveillance, Municipal facilities and environmental management, natural disaster surveillance, water conservancy facilities surveillance.
Features
●Adopting high strength stainless steel overall spray;
●Equipping automatic lighting when opening the case;
●Equipping intelligent temperature control fan；
●Equipping air switch and power surge protector；
●Equipping 4-port fiber splice unit；
●Equipping power output module,AC220V/AC24V/DC12V for option；
●Multi-service card for option,supporting multi-device flexible access,compatible with other brand fiber optic communication equipment.

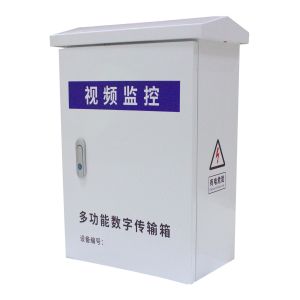

Product picture
Application
●Urban public security surveillance(Safe city project)
●Counter-terrorist surveillance
●Natural disaster surveillance
●Urban road traffic surveillance system
●Production process surveillance system for Industry,coal mine and soon
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
